粗糙度和轮廓测量仪探头
扫码
扫码
79e39323f56915f8c522b8e6d10d17f9
1fea5f2b7151a63c391e23fe015c09f7
6eb8c990896ee6292420b5c661e1edf2
A02160376caeb837798be4deb0bf6c5d
30eb718c25cfac279f454065e5e7acb4
6af7154b2bb3d9cfa90a5772526c768a
9286e700c7637889496d3b3ef1ddeb30 scaled
D04918008945353dbac143298e10c2d2 scaled
技术规格
 |  |  |
 |  |  |
 |  |
| 名称 | 型号 | 材料 | L | L1 | L2 | φ1 | φ2 | φ3 | θ | R | θ2 |

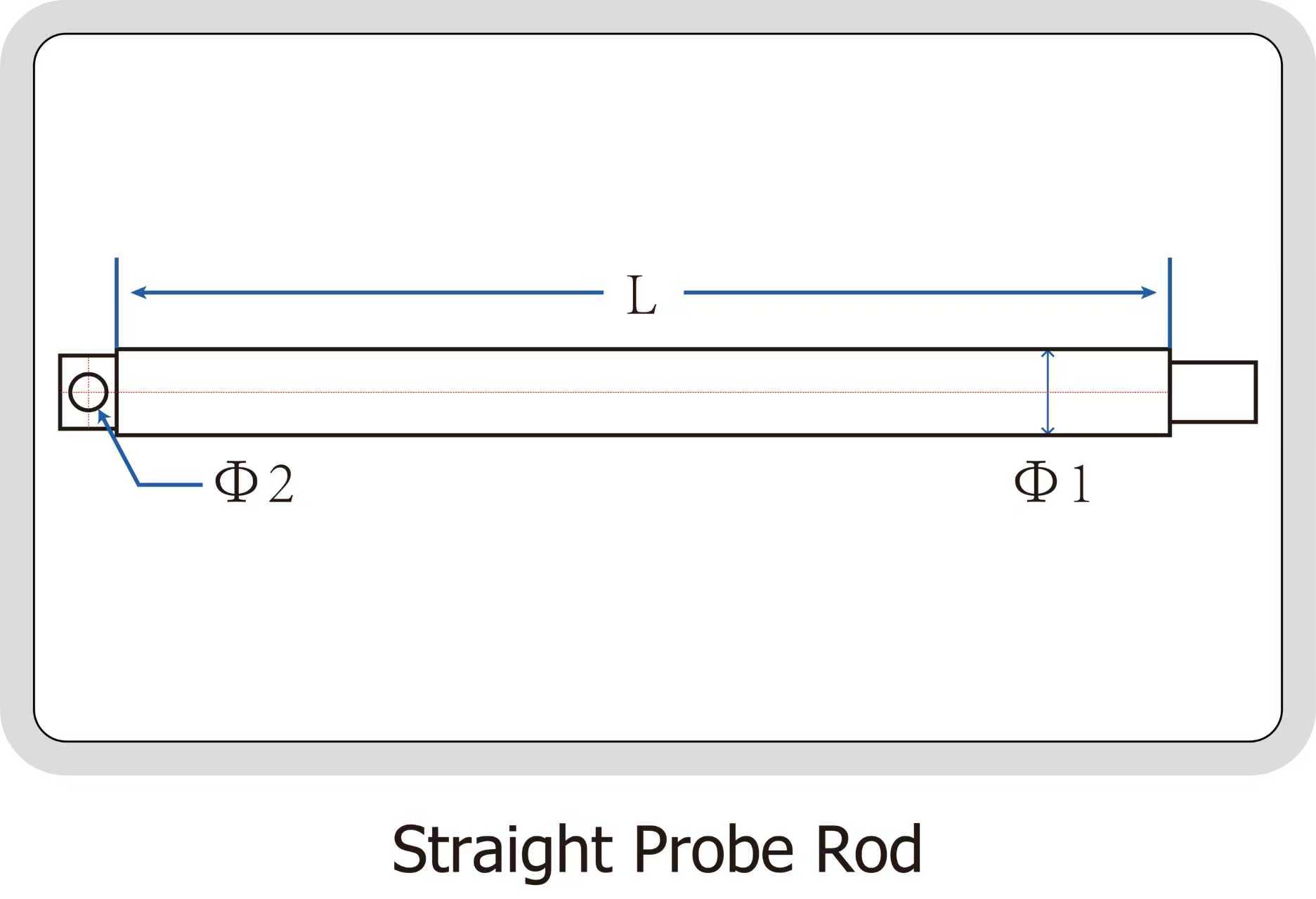

| 直探杆 | S8151 | 碳纤维 | 150 | - | - | 8 | 2 | - | - | - | - |
| 直探杆 | S8152 | 碳纤维 | 150 | - | - | 8 | 3 | - | - | - | - |

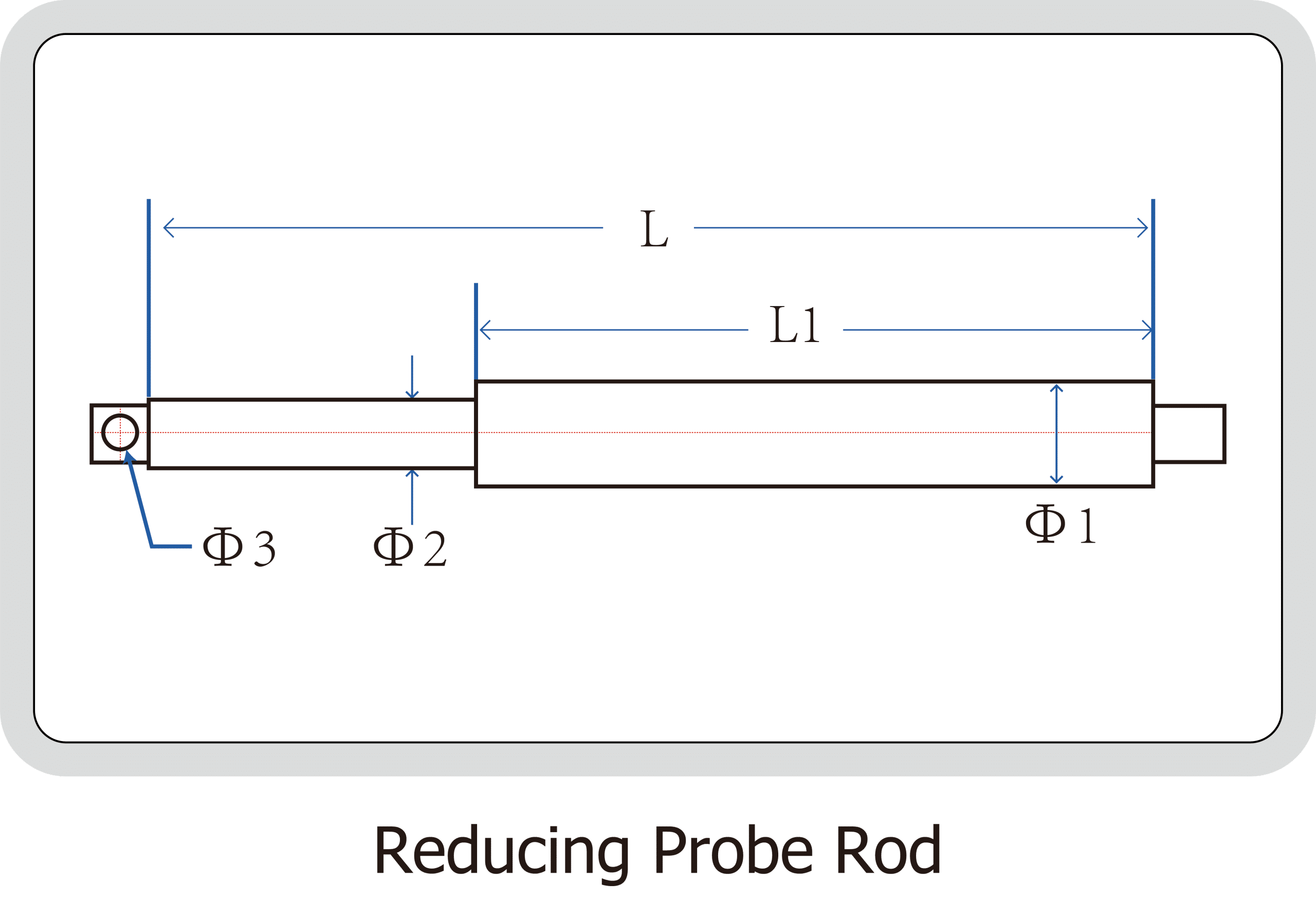

| 减径探杆 | S8152 | 碳纤维 | 150 | 125 | - | 8 | 2 | 1 | - | - | - |

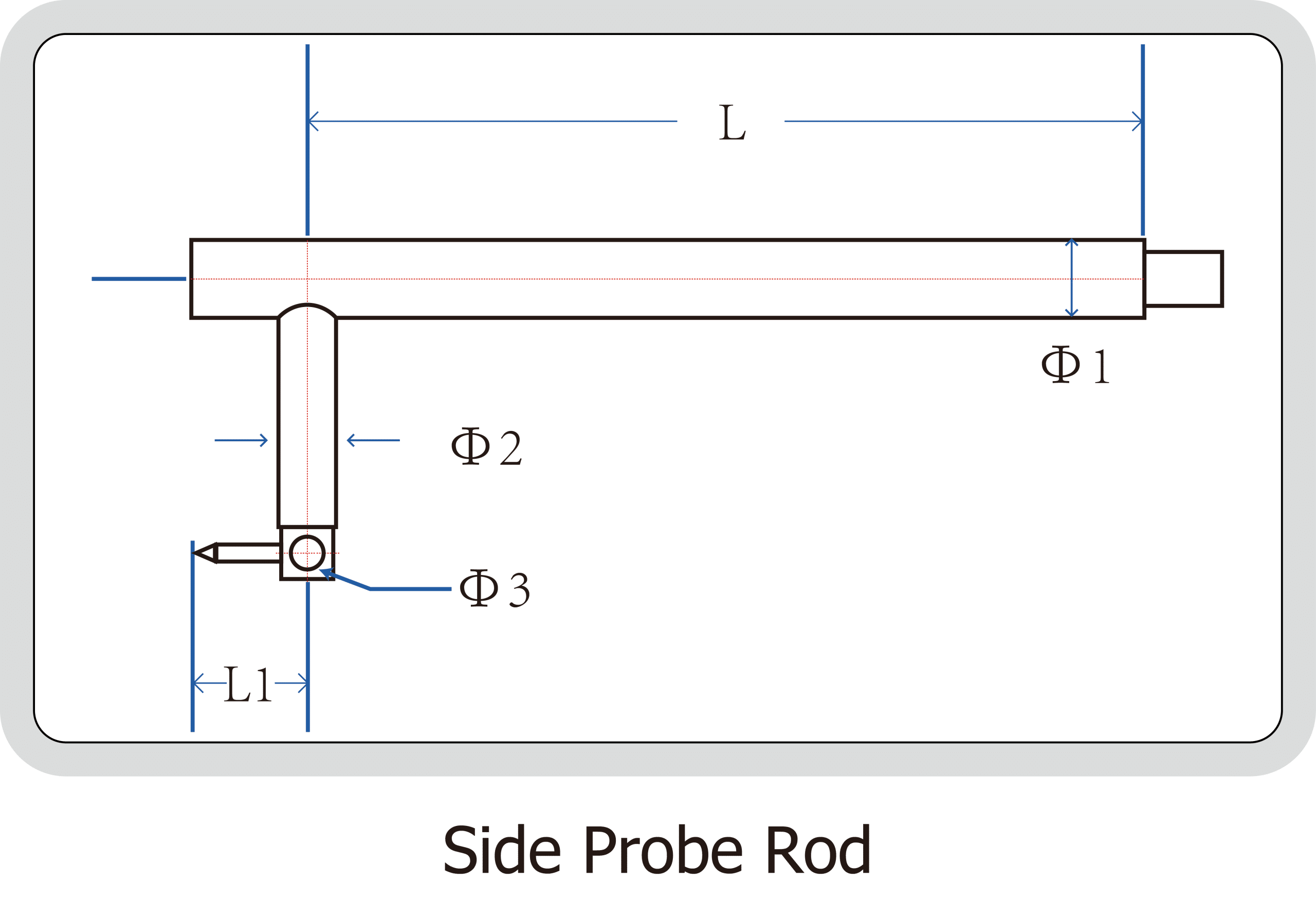

| 侧向探杆 | N815152 | 碳纤维 | 150 | 15 | - | 8 | 8 | 3 | - | - | - |

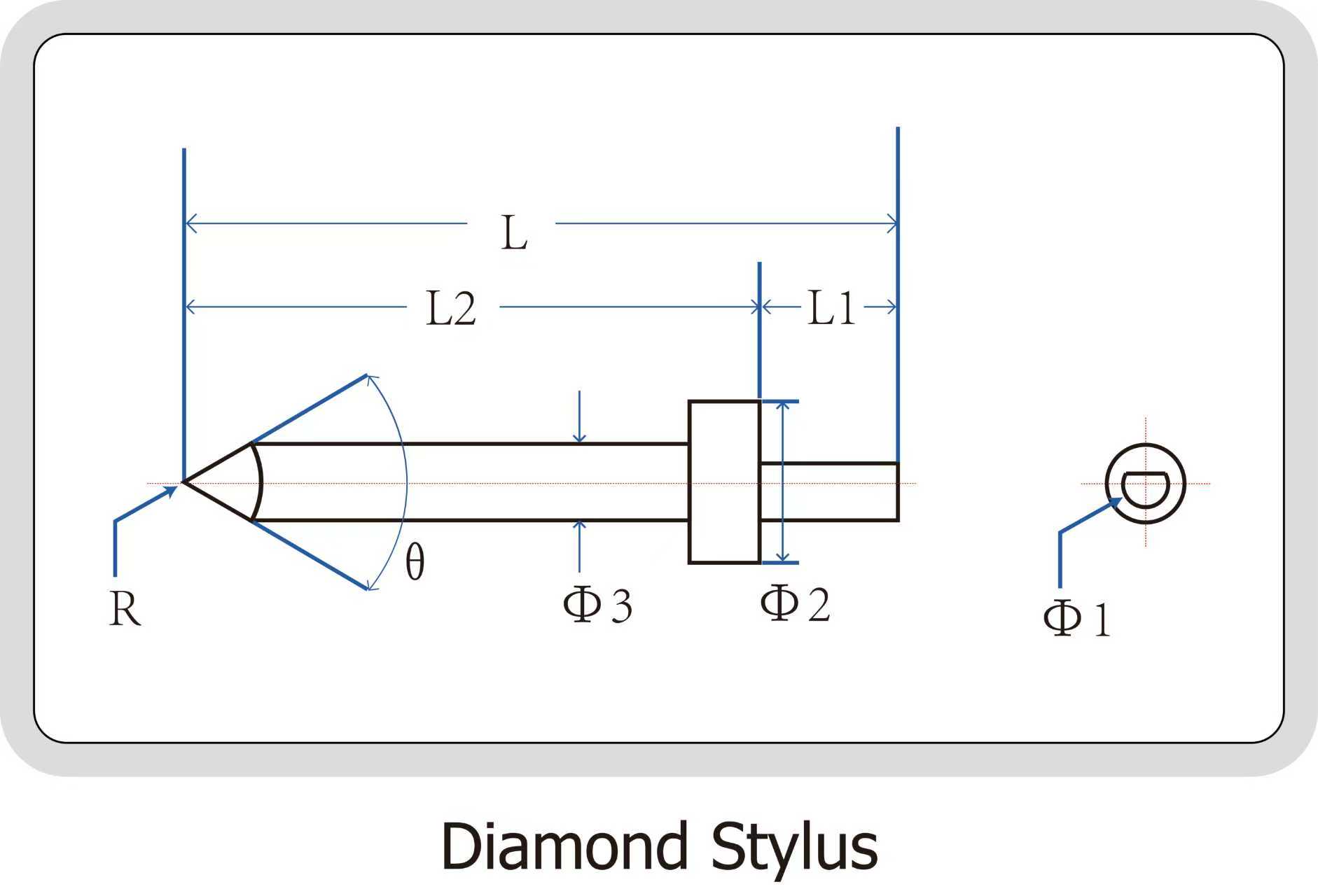

| 金刚石测头 | D3001 | 金刚石 | 24 | 8 | 16 | 2.2 | 5 | 3 | 60 | 0.002/0.005 | - |

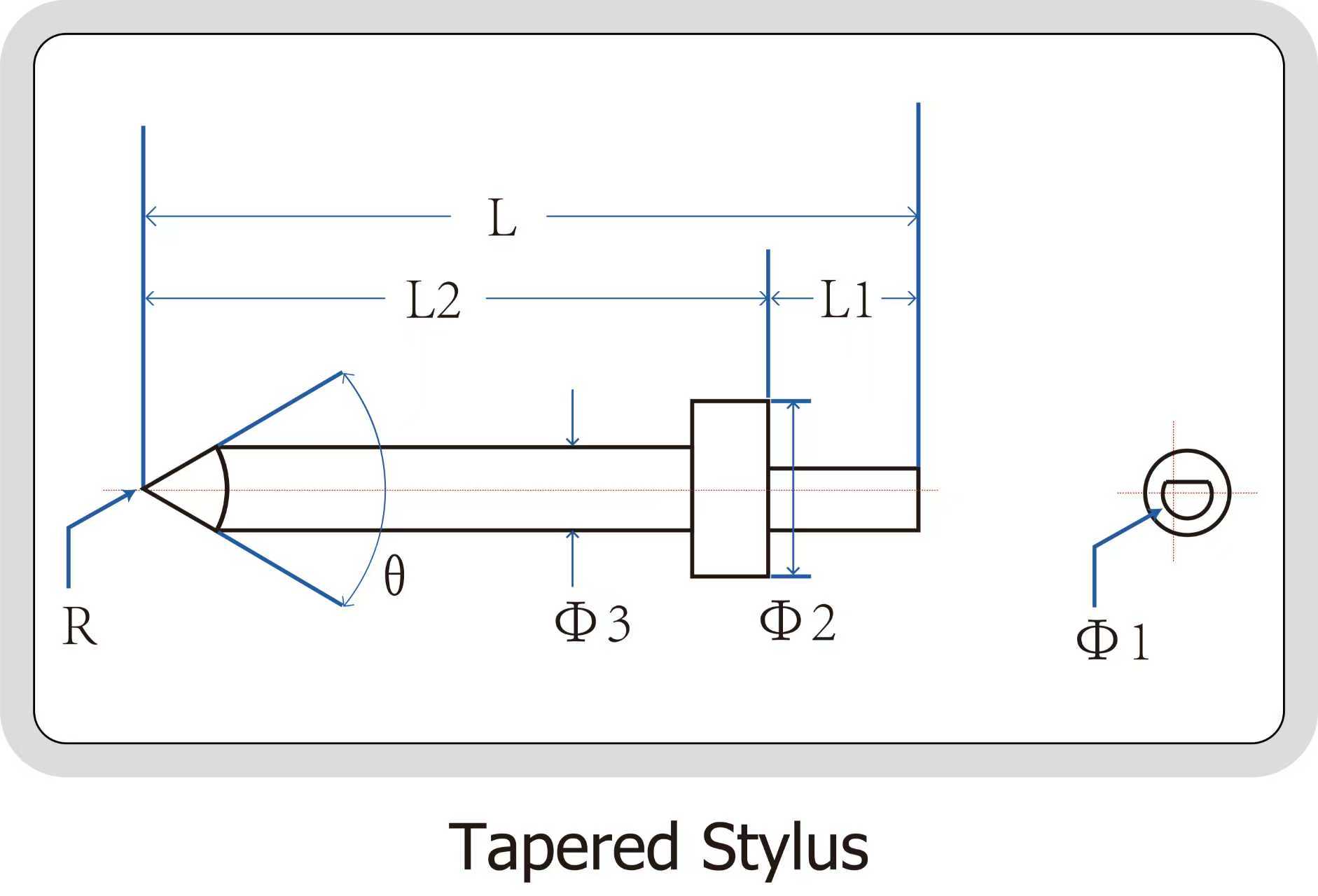

| 锥形测头 | N3001 | 硬质合金 | 24 | 8 | 16 | 2.2 | 5 | 3 | 24 | 0.025 | - |

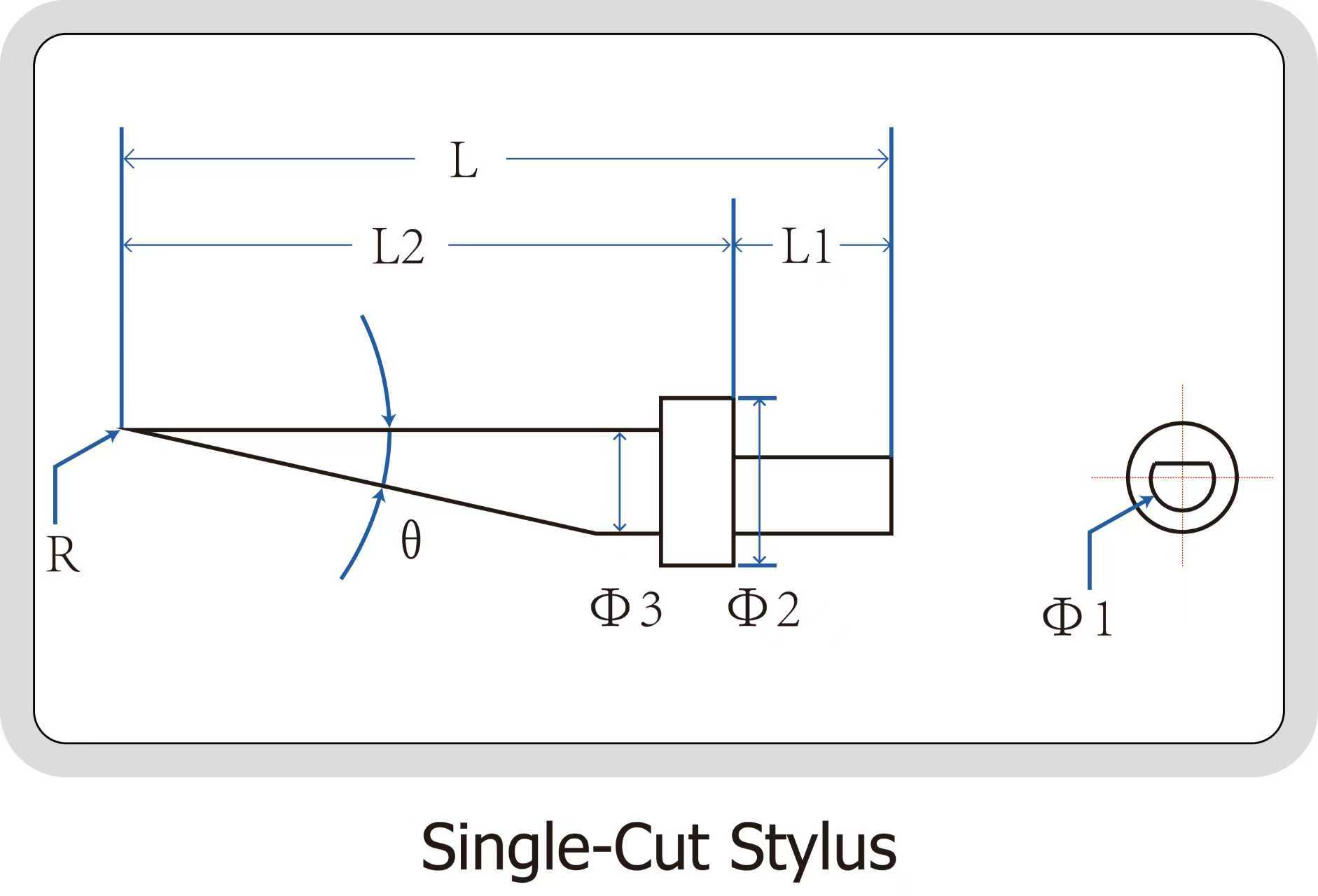

| 单刃测头 | SP2003 | 硬质合金 | 21 | 6 | 15 | 1.5 | 4 | 2 | 12 | 0.025 | - |
| 单刃刻针 | SP3001 | 硬质合金 | 24 | 8 | 16 | 2.2 | 5 | 3 | 12 | 0.025 | - |
| 双刃刻针 | DC2001 | 硬质合金 | 12 | 4 | 8 | 1.5 | 4 | 2 | 60 | 0.025 | 20 |

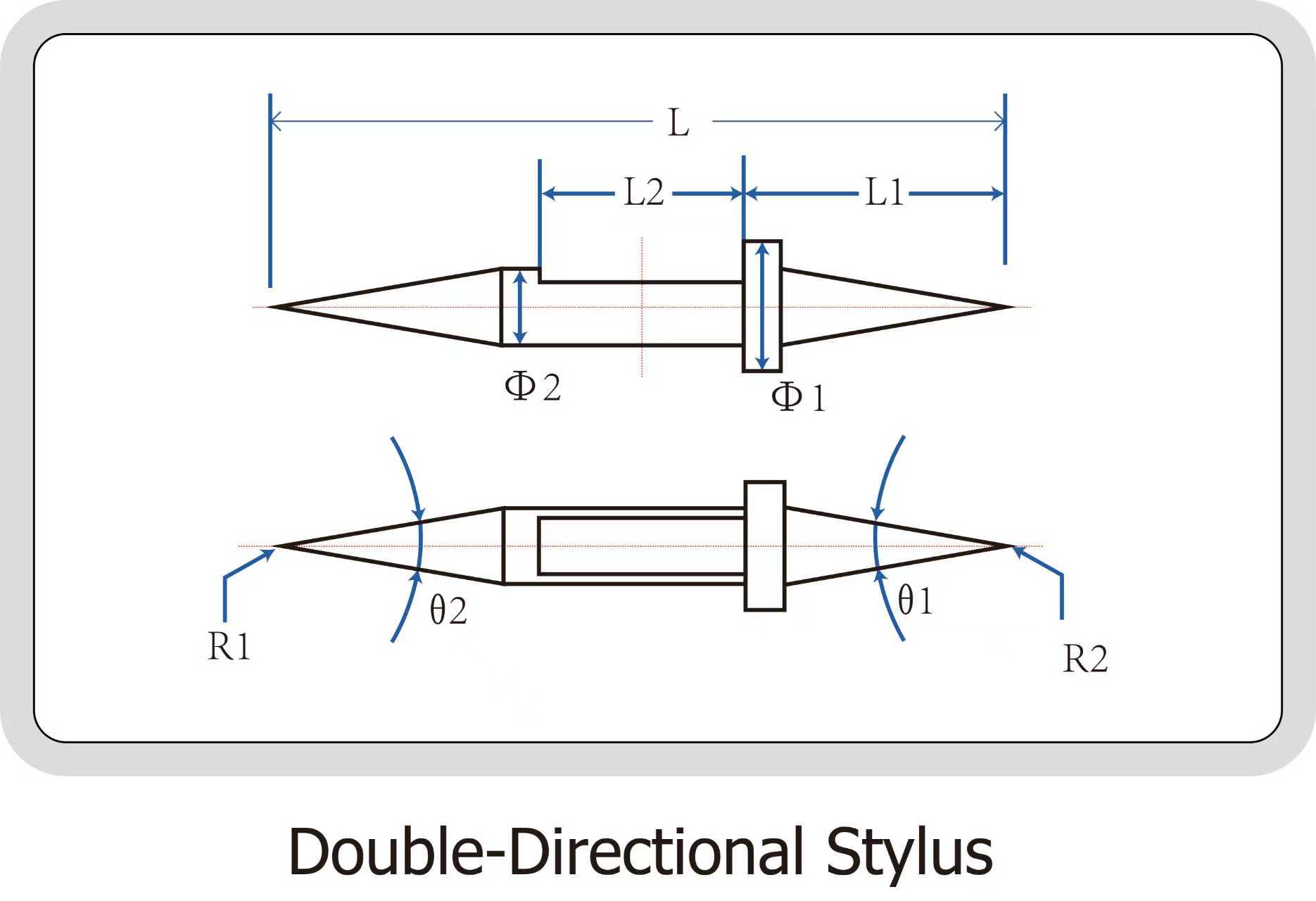

| 双向刻针 | B3001 | 硬质合金 | 28 | 10 | 8 | 5 | 3 | 20 | 20 | 0.025 | 20 |
